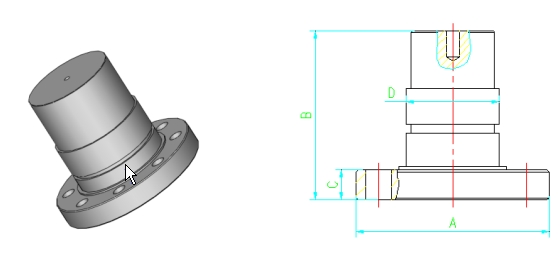

| TRUNNION of ball valve--Detail |
|
Pressure |
Size |
Outsize Diameter
A(¦Õ) |
Trunnion Height
B |
Flange Thickness
C |
Trunnion Diameter D(¦Õ) |
|
150 |
4¡¡À(6¡¡ÀX4¡¡À) |
78 |
63 |
14 |
35 |
|
6"(8"X6") |
101 |
81 |
14 |
45 |
|
8"(10"X8") |
105 |
87 |
15 |
55 |
|
10"(12"X10") |
140 |
114 |
22 |
80 |
|
12"(14"X12") |
125 |
110 |
20 |
75 |
|
14"(16"X14") |
127 |
125 |
22 |
78 |
|
16"(18"X16") |
155 |
139 |
25 |
90 |
|
18"(20"X18") |
192 |
150 |
27 |
115 |
|
20"(24"X20") |
158 |
150 |
28 |
95 |
|
24" |
198 |
167 |
30 |
125 |
|
300 |
4¡¡À(6¡¡ÀX4¡¡À) |
78 |
68 |
24 |
35 |
|
6"(8"X6") |
101 |
81 |
14 |
45 |
|
8"(10"X8") |
105 |
87 |
15 |
55 |
|
10"(12"X10") |
140 |
114 |
22 |
80 |
|
14"(16"X14") |
170 |
142 |
24 |
105 |
|
16"(18"X16") |
185 |
152 |
25 |
105 |
|
18"(20"X18") |
192 |
162 |
27 |
115 |
|
20"(24"X20") |
196 |
169 |
33 |
125 |
|
24" |
200 |
178 |
32 |
125 |
|
600 |
4¡¡À(6¡¡ÀX4¡¡À) |
90 |
67 |
15 |
44 |
|
6"(8"X6") |
104 |
90.5 |
16 |
50 |
|
8"(10"X8") |
135 |
110 |
20 |
70 |
|
12"(14"X12") |
155 |
148 |
28 |
90 |
|
Galilee Valve Manufacturing Co.,Ltd |
|
|
|
Pressure |
Size |
Outsize Diameter
A(¦Õ) |
Trunnion Height
B |
Flange Thickness
C |
Trunnion Diameter D(¦Õ) |
|
|
600 |
14"(16"X14") |
170 |
152 |
24 |
105 |
|
|
16"(18"X16") |
180 |
158 |
30 |
95 |
|
|
18"(20"X18") |
165 |
162 |
32 |
125 |
|
|
20"(24"X20") |
215 |
166 |
28 |
135 |
|
|
24" |
230 |
219 |
35 |
145 |
|
|
900 |
4"(6"X4") |
90 |
71 |
13 |
44 |
|
|
6"(8"X6") |
110 |
78 |
18 |
55 |
|
|
8"(10"X8") |
118 |
122 |
20 |
60 |
|
|
10"(12"X10") |
152 |
130 |
24 |
85 |
|
|
12"(14"X12") |
170 |
148 |
27 |
95 |
|
|
14"(16"X14") |
195 |
154 |
30 |
110 |
|
|
16"(18"X16") |
210 |
173 |
35 |
12 |
|
|
1500 |
4"(6"X4") |
110 |
105 |
25 |
50 |
|
|
6"(8"X6") |
135 |
145 |
26 |
65 |
|
|
12"(14"X12") |
195 |
198 |
30 |
113 |
| |
| |
|
|
|
|
|
