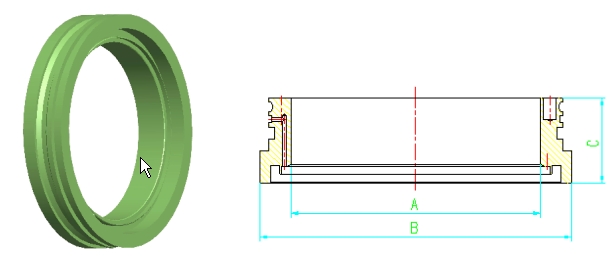

| seat of ball valve--Detail |
|
Pressure |
Size |
Valve Bore
A(¦Õ) |
Seat Outside Diameter
B(¦Õ) |
Seat Width
C |
|
|
150
|
4"(6"X4") |
102 |
134 |
27 |
|
|
6"(8"X6") |
152 |
194 |
37 |
|
|
8"(10"X8") |
204 |
256 |
39 |
|
|
10"(12"X10") |
254 |
304 |
39.5 |
|
|
12"(14"X12") |
305 |
351 |
42 |
|
|
14"(16"X14") |
334 |
388 |
54 |
|
|
16"(18"X16") |
387 |
440 |
56 |
|
|
18"(20"X18") |
436 |
490 |
75 |
|
|
20"(24"X20") |
487 |
562 |
84 |
|
|
24" |
589 |
666 |
86 |
|
|
300 |
4"(6"X4") |
102 |
132 |
24 |
|
|
6"(8"X6") |
152 |
194 |
37 |
|
|
8"(10"X8") |
204 |
256 |
39 |
|
|
10"(12"X10") |
254 |
304 |
39.5 |
|
|
14"(16"X14") |
334 |
388 |
54 |
|
|
16"(18"X16") |
387 |
440 |
56 |
|
|
18"(20"X18") |
436 |
490 |
75 |
|
|
20"(24"X20") |
487 |
562 |
84 |
|
|
24" |
589 |
666 |
86 |
|
|
600 |
4"(6"X4") |
100 |
146 |
43 |
|
|
6"(8"X6") |
152 |
213 |
64 |
|
|
8"(10"X8") |
201 |
248 |
57.5 |
|
|
12"(14"X12") |
305 |
370 |
67 |
|
|
14"(16"X14") |
334 |
388 |
65 |
|
|
Galilee Valve Manufacturing Co.,Ltd |
|
|
|
Pressure |
Size |
Valve Bore
A(¦Õ) |
Seat Outside Diameter
B(¦Õ) |
Seat Width
C |
|
|
600 |
16"(18"X16") |
387 |
440 |
56 |
|
|
20"(24"X20") |
487 |
562 |
86 |
|
|
24" |
589 |
666 |
86 |
|
|
900 |
4"(6"X4") |
102 |
151 |
45 |
|
|
6"(8"X6") |
152 |
214 |
62 |
|
|
8"(10"X8") |
203 |
276 |
59 |
|
|
10"(12"X10") |
252 |
326 |
66 |
|
|
12"(14"X12") |
305 |
370 |
67 |
|
|
14"(16"X14") |
322 |
402 |
72 |
|
|
16"(18"X16") |
373 |
416 |
82 |
|
|
1500 |
4"(6"X4") |
100 |
160 |
64 |
|
|
6"(8"X6") |
144 |
216 |
67 |
|
|
8"(10"X8") |
192 |
264 |
65 |
|
|
10"(12"X10") |
240 |
330 |
89 |
|
|
12"(14"X12") |
287 |
374 |
80 |
| |
| |
|
|
|
|
|
