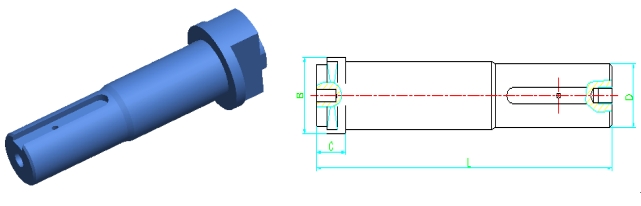

| stem of ball valve--Detail |
|
Pressure |
Size |
Stem Diameter D(φ) |
Stem Head Diameter
B(φ) |
C |
Stem Length L |
|
150 |
4"(6"X4") |
30 |
44 |
33 |
175 |
|
6"(8"X6") |
35 |
50 |
16 |
217 |
|
8"(10"X8") |
45 |
60 |
18 |
230 |
|
10"(12"X10") |
55 |
75 |
22 |
260 |
|
12"(14"X12") |
60 |
80 |
25 |
258 |
|
14"(16"X14") |
65 |
82 |
34 |
270 |
|
16"(18"X16") |
70 |
90 |
30 |
290 |
|
18"(20"X18") |
80 |
115 |
93 |
350 |
|
20"(24"X20") |
88 |
120 |
61 |
338 |
|
24" |
115 |
150 |
50 |
377 |
|
300 |
4"(6"X4") |
30 |
44 |
32 |
148 |
|
6"(8"X6") |
35 |
50 |
16 |
217 |
|
8"(10"X8") |
45 |
60 |
18 |
230 |
|
10"(12"X10") |
58 |
75 |
25 |
379 |
|
14"(16"X14") |
75 |
93 |
36 |
343 |
|
16"(18"X16") |
85 |
105 |
30 |
371 |
|
18"(20"X18") |
95 |
130 |
88 |
345 |
|
20"(24"X20") |
105 |
140 |
92 |
371 |
|
24" |
115 |
150 |
109 |
425 |
|
600 |
4"(6"X4") |
35 |
54 |
32 |
138 |
|
6"(8"X6") |
44.9 |
60 |
16 |
219 |
|
8"(10"X8") |
50 |
68 |
19 |
265 |
|
12"(14"X12") |
72 |
90 |
23 |
327 |
|
14"(16"X14") |
82 |
100 |
36 |
337 |
|
16"(18"X16") |
90 |
115 |
40 |
361 | |
| |
|
|
|
|
|
