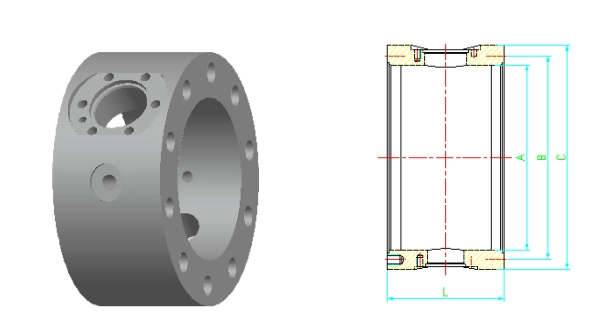

| Body of ball valve--Detail |
|
Pressure |
Size |
Valve Bore
A(¦Õ) |
Bore
B(¦Õ) |
End Flange Outsie Diameter C(¦Õ) |
D(¦Õ) |
Middle Flange Outside Diameter E(¦Õ) |
F |
Body Connector
Length L |
End Flange Thickness
T |
|
|
150 |
4¡¡À |
102 |
\ |
230 |
168 |
223 |
36 |
86.5 |
22.3 |
|
|
6X4¡¡À |
102 |
152 |
280 |
168 |
223 |
36 |
143 |
23.9 |
|
|
6" |
152 |
\ |
280 |
248 |
320 |
51 |
135 |
23.9 |
|
|
8"X6" |
152 |
201 |
345 |
248 |
320 |
51 |
167 |
27 |
|
|
8" |
204 |
\ |
345 |
326 |
408 |
58 |
147 |
27 |
|
|
10"X8" |
204 |
252 |
405 |
326 |
408 |
58 |
179 |
28.6 |
|
|
10" |
254 |
\ |
405 |
401 |
495 |
59 |
162 |
28.6 |
|
|
12"X10" |
254 |
304 |
485 |
401 |
495 |
59 |
200 |
30.2 |
|
|
12" |
305 |
\ |
485 |
482 |
562 |
62 |
190 |
30.2 |
|
|
14"X12" |
305 |
334 |
535 |
482 |
562 |
62 |
202 |
33.4 |
|
|
14" |
334 |
\ |
535 |
530 |
603 |
60 |
165 |
33.4 |
|
|
16"X14" |
334 |
385 |
596 |
530 |
603 |
60 |
203 |
35 |
|
|
16" |
387 |
\ |
595 |
608 |
700 |
59 |
168 |
35 |
|
|
18"X16" |
387 |
436 |
635 |
608 |
700 |
59 |
219 |
38 |
|
|
18" |
436 |
\ |
635 |
664 |
760 |
68 |
200 |
38 |
|
|
20" |
499 |
\ |
700 |
732 |
836 |
73 |
193 |
41.3 |
|
|
24" |
589 |
\ |
815 |
880 |
1000 |
76.5 |
223 |
46.1 |
|
|
300 |
4¡¡À |
102 |
\ |
255 |
168 |
233 |
36 |
114.5 |
30.2 |
|
|
6"X4¡¡À |
102 |
152 |
320 |
168 |
233 |
36 |
163.5 |
35 |
|
|
6" |
152 |
\ |
320 |
248 |
320 |
51 |
139 |
35 |
|
|
8"X6" |
152 |
204 |
380 |
248 |
320 |
51 |
189 |
39.7 |
|
|
Galilee Valve Manufacturing Co.,Ltd |
|
|
|
Pressure |
Size |
Valve Bore
A(¦Õ) |
Bore
B(¦Õ) |
End Flange Outsie Diameter C(¦Õ) |
D(¦Õ) |
Middle Flange Outside Diameter E(¦Õ) |
F |
Body Connector
Length L |
End Flange Thickness
T |
|
|
300 |
8" |
204 |
\ |
381 |
326 |
408 |
58 |
163 |
41.2 |
|
|
10"X8" |
204 |
254 |
445 |
336 |
408 |
58 |
204 |
46.1 |
|
|
10" |
254 |
\ |
445 |
410 |
495 |
66 |
187 |
46.1 |
|
|
12"X10" |
254 |
305 |
520 |
410 |
495 |
66 |
227 |
79.3 |
|
|
14" |
334 |
\ |
585 |
527 |
635 |
70 |
214 |
52.4 |
|
|
16" |
387 |
\ |
650 |
608 |
730 |
77 |
216 |
55.6 |
|
|
18" |
436 |
\ |
710 |
664 |
790 |
83 |
245 |
58.8 |
|
|
20"X18" |
436 |
487 |
775 |
664 |
790 |
83 |
284 |
62 |
|
|
20" |
487 |
\ |
775 |
732 |
862 |
91 |
247 |
62 |
|
|
24"X20" |
487 |
589 |
915 |
732 |
862 |
91 |
323 |
68.3 |
|
|
24" |
598 |
\ |
915 |
880 |
1018 |
96.5 |
266 |
68.3 |
|
|
600 |
4¡¡ã |
100 |
\ |
275 |
164 |
240 |
65 |
153 |
38.1 |
|
|
6"X4¡¡À |
100 |
150 |
356 |
164 |
240 |
65 |
216.5 |
47.7 |
|
|
6" |
152 |
\ |
355 |
248 |
336 |
68 |
200 |
47.7 |
|
|
8"X6" |
152 |
204 |
380 |
326 |
320 |
51 |
189 |
39.7 |
|
|
8" |
201 |
|
420 |
326 |
425 |
75.5 |
223 |
55.6 |
|
|
10"X8" |
201 |
252 |
510 |
326 |
425 |
75.5 |
287 |
63.5 |
|
|
12" |
305 |
|
560 |
478 |
596 |
89 |
260 |
66.7 |
|
|
14"X12" |
305 |
334 |
605 |
478 |
596 |
89 |
286 |
69.9 |
|
|
14" |
334 |
\ |
605 |
530 |
652 |
93 |
265 |
69.9 |
|
|
16"X14" |
334 |
387 |
685 |
530 |
652 |
93 |
318 |
76.2 |
|
|
16" |
387 |
|
685 |
615 |
740 |
93 |
292 |
76.2 |
|
|
18" |
436 |
|
745 |
664 |
800 |
103 |
334 |
82.6 |
|
|
20"X18" |
436 |
487 |
815 |
664 |
800 |
103 |
385 |
88.9 |
|
|
20" |
487 |
\ |
815 |
740 |
876 |
105 |
336 |
88.9 |
|
|
24"X20" |
487 |
589 |
940 |
740 |
876 |
105 |
438 |
101.6 |
|
|
24" |
598 |
589 |
940 |
880 |
1060 |
121.5 |
393 |
101.6 |
|
|
900 |
4¡¡ã |
102 |
\ |
290 |
168 |
255 |
59£®5 |
180£®5 |
44£®5 |
|
|
6"X4¡¡À |
102 |
150 |
381 |
168 |
255 |
59£®5 |
255.5 |
55.6 |
|
|
6" |
152 |
\ |
380 |
248 |
342 |
73 |
208 |
55.6 |
|
|
8"X6" |
152 |
204 |
470 |
248 |
342 |
73 |
271 |
63.5 |
|
|
8" |
203 |
\ |
470 |
326 |
440 |
84 |
256 |
63.5 |
|
|
10"X8" |
203 |
252 |
545 |
326 |
440 |
84 |
306 |
69.9 |
|
|
10" |
252 |
\ |
545 |
406 |
516 |
88 |
277 |
69.9 |
|
|
12"X10" |
252 |
305 |
610 |
406 |
516 |
88 |
342 |
79.4 |
|
|
12" |
305 |
\ |
610 |
| |
|
|
|
|
| |
